2017 Amada HG 8025 CNC Press Brake

Inquire

88-ton X 8' capacity

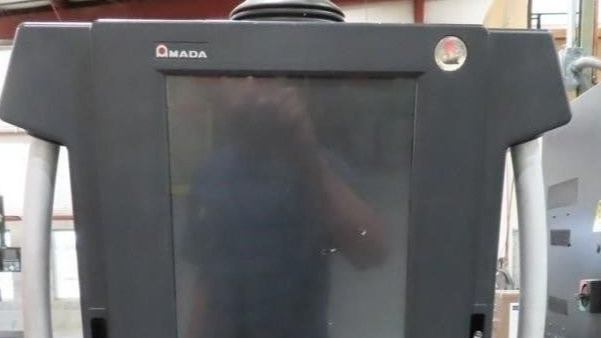

AMNC 3i 8-axis control
Bi-directional servo-driven hydraulic pumps

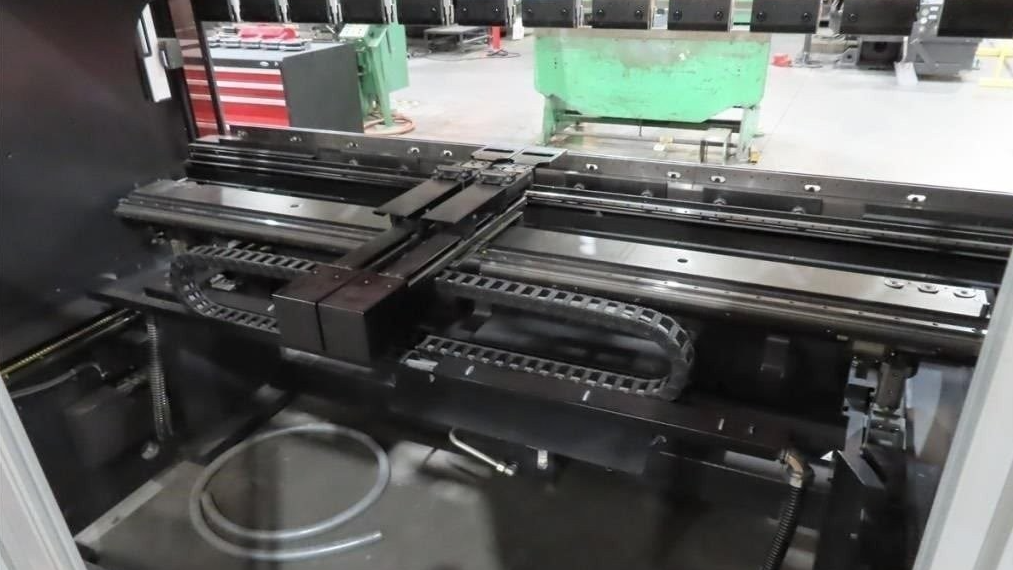

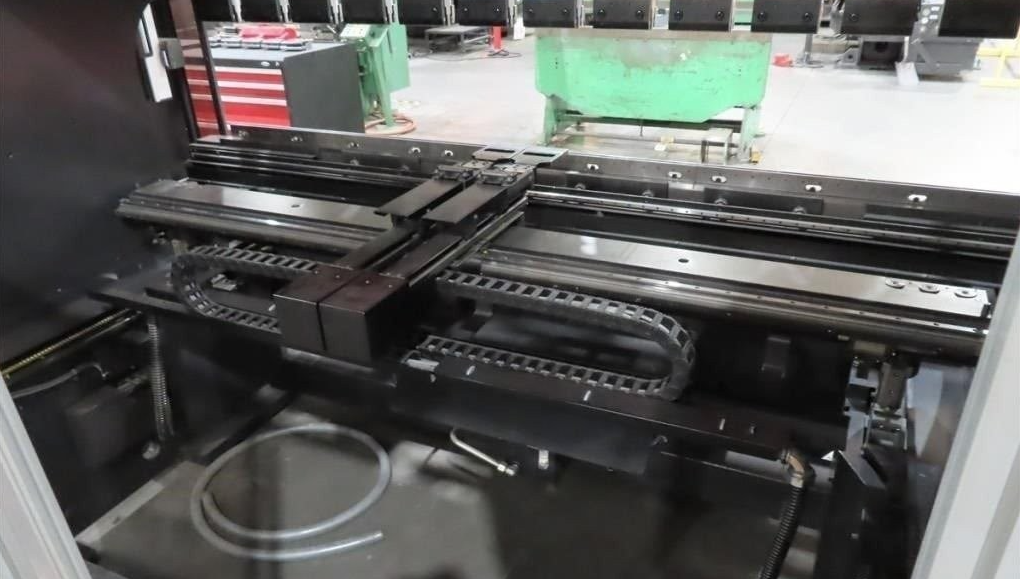

Bi-L bend angle detection L-shift back-gauge function
Dynamic hydraulic crowning
Laser press guarding

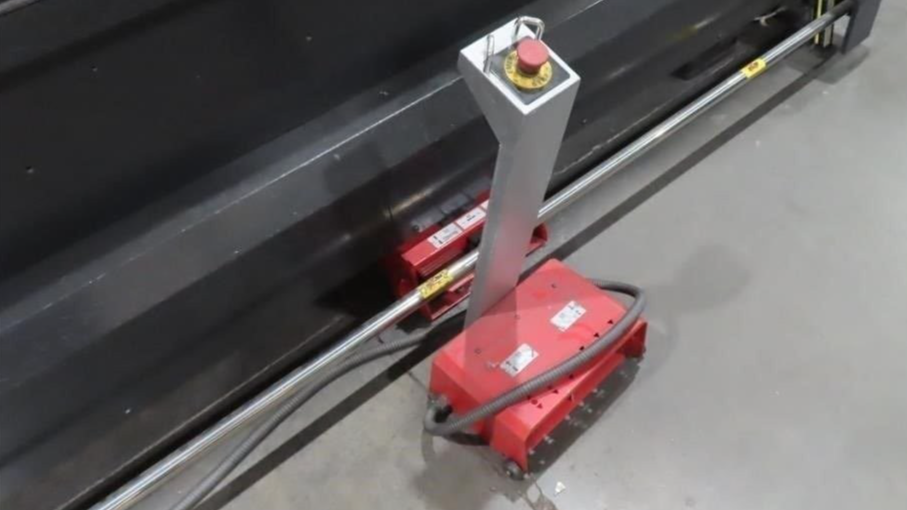

Auto slide footswitch
Distance between frames: 2210 mm
Stroke length: 250 mm
Approach: 220 mm/s; Bend speed: 20 mm/s; Return: 250 mm/s
Machine weight: 7200 kg.
Power: 15.2 kVA
